RESEARCH & DEVELOPMENT
Research and development are part of our heritage, and something we still cherish. Not only is our production located in Ulricehamn, but also our research and development department. This means local production, and a constant work to find new and even smarter solutions.
When we receive a request for a customised solution, we sometimes open up our archive. Time after time, we surprise ourselves with all the smart solutions we have developed together with our partners and customers during the years. Below you can find a small selection of these.
CUSTOMER CASE: STADIUM
With space for more than 30 orders for each picking trolley, Stadium's online department can maximise its logistics in a super-effective e-commerce solution. There is a lot of pressure on the online department, which is Stadium's biggest shop.
CUSTOMER CASE: YVES ROCHER
At Yves Rocher in Helsingborg, Sweden, they’re sending up to 15.000 packages a day. To pick straight into the delivery boxes has efficiency the flow and with the new trolleys with electric engines they have been able to increase the capacity. The result is very satisfied personnel who picks more efficiency and at the same time more ergonomic.

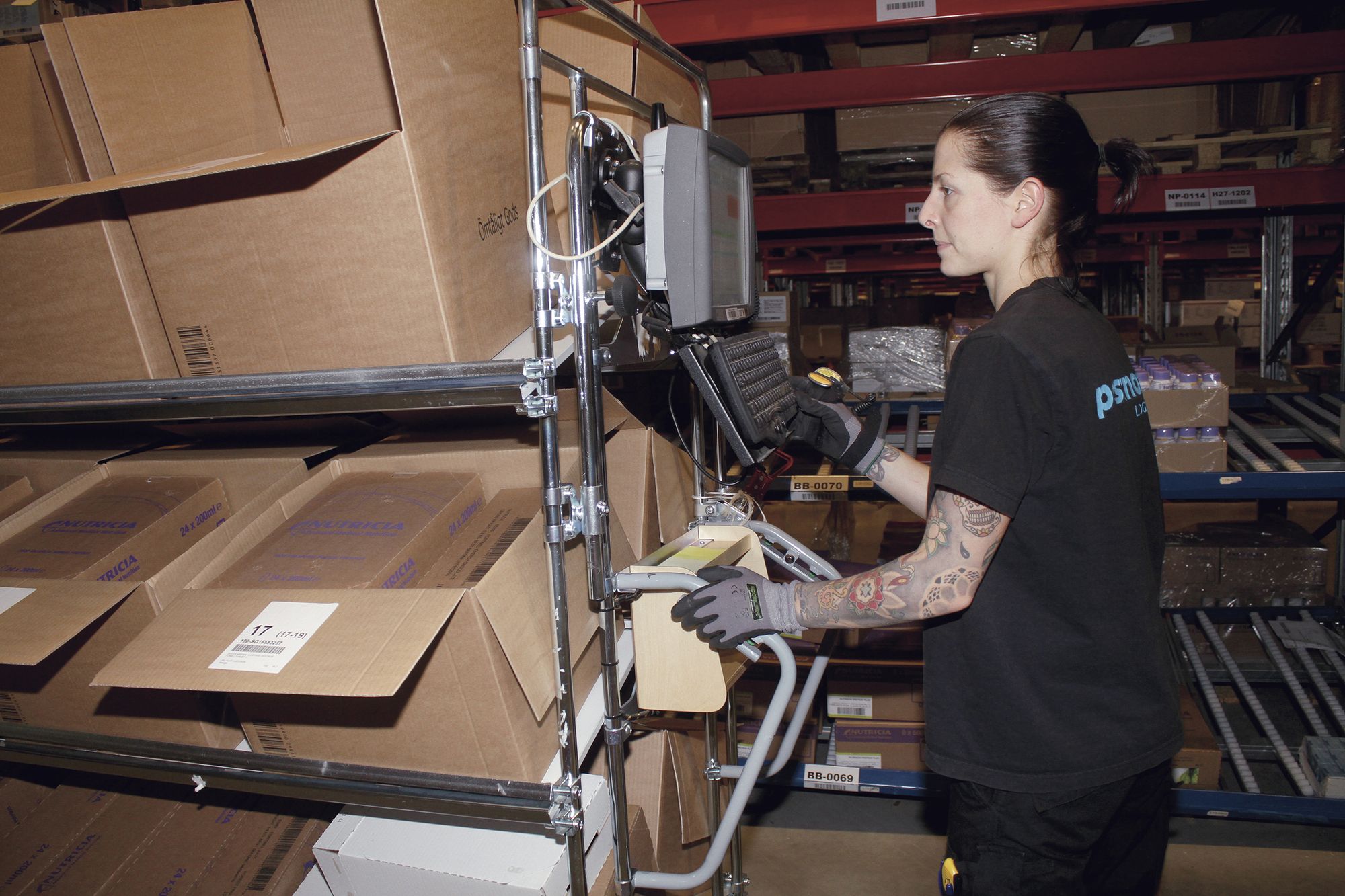

CUSTOMER CASE: POSTNORD
PostNord offers communications and logistics solutions in the Nordic region. Third Party Logistics needs high flexibility in picking. Their customers have different kinds of products in different sizes that should be able to be picked in the same trolley. With angled shelves and a engine that drives the trolley, PostNord manages to meet their customers’ needs.
SOLUTIONS ADAPTED TO YOUR UNIQUE NEEDS
Despite our wide standard range of trucks and trolleys, customers sometimes still need tailor-made solutions. That's no problem for us.
One of the secrets behind Helge Nyberg's success is that we have the resources and organisation to develop products and solutions according to customers' specific requirements. We have experienced product developers, expert assembly mechanics, a wealth of solid craftmanship, know-how and expertise regarding logistics and light material handling. There are many advantages of having your own manufacturing facilities and R&D department.
Here is a selection of special solutions developed and produced in our factory.
trolley with electric supply
With space for laptop, printer, scanner or similar. Article number: 14902819
space for many bags
An e-commerce trolley for multi-order picking with space for many grocery bags and boxes. Article number: 14903114
Trolley for towing truck with holder for packaging. Article number: 14903185
E-commerce trolley with adjustable shelf dividers, ladder and bin. Article number: 14903069
with inclined shelves
Space for boxes for an ergonomic pick. Article number: 14902809
PICKING TROLLEY WITH
Picking trolley for spare parts with inclined shelves for better ergonomics. Article number: 14903176
Electric shelf trolley for food picking with ladder and inclined shelves. Article number 14903153
Picking trolley for
Picking trolley with space for standing goods such as fluorescent lamps. Article number: 14902878
flatbed and ramp
The flatbed on the truck has a ramp, which makes it easy to roll up trolleys. Article number: 14902852Shoppa här
Manual picking trolley
Long goods trolley
Picking trolley for long products such as skis or pipes. Article number 24902860
When picking several orders at the same time, our e-commerce trolley is a flexible solution, where shelf dividers are easily added, adjusted or removed. The side grid is also removable and can be mounted on either the right or the left side depending on your own requirements.
Depending on the aisle width and goods’ size, the trolleys are made in two different widths. The centre-wheels’ equipment makes the trolley easy to manoeuvre even with one hand and makes it easy to turn also with heavy load. Other sizes or power supply equipment etc. available on request.
E-COMMERCE TROLLEY SMALL
incl. 2 x sidegrids, 12 dividers, memoboard, 1 extra shelf.
E-COMMERCE TROLLEY MEDIUM
incl. 2 x sidegrids, 12 dividers, memoboard, 1 extra shelf.
Shiny zinc-coated finish. Shelves are continuously adjustable in height and could also easily be removed. As a standard the trolley is equipped for 16 orders. A support wheel system(two wheels positioned centrally underneath the trolley) makes it very easy to maneuver and turn.
Four swivel wheels 125x32 mm, grey rubber and ball bearing hub. Two with brakes. Safety wheels on each corner for protection. Centre wheel 160x40 mm grey rubber and ball bearing hub. Max. load per shelf is 100 kg and max. load per trolley is 300 kg.
Take care of your body. Our solution with electric engine on the trolley makes your work easier. The engine helps driving the trolley forward and minimises operator's restrain in the daily work with transports over long distances.
Engine compatible with trolleys in Ergobjörn Series 300 and Series 400. Choose freely among our standard products in these series. Minimum requirements for trolleys: length over 1200 mm, width 600 mm or 800 mm. Electric engine is installed underneath the bottom shelf, so it doesn’t encroach on the trolley’s loading space. The picture shows our shelf trolley model 27 from Series 400. The trolley has automatic parking brake and emergency brake. Back/forward operating unit operated with a joystick or an on-off switch. If trolley is to be used very frequently, we recommend 50 Ah gel batteries. These batteries are maintenance-free and allow the trolley to be used in shifts frequently and with high loads. For less frequent use or with small loads, 25 Ah batteries are sufficient. Maximum speed 5 km/h. The operating box can be programmed for acceleration, brakes, speed backwards and forwards etc. The engine is a registered design.
TROLLEY WITH ELECTRIC OPERATION
Max load (kg)
Max. load upper shelf (kg)
Max load bottom shelf (kg)
Batterie 25/50 Ah, charger 7A/8A.
Do you want to know more about what solutions might be right for you?
Contact us and we will be in touch.
Helge Nyberg AB is an international company with sales of our truck and trolley concept in 60 countries. Our head office with production and development is in Ulricehamn, Sweden. Our trademark Ergobjörn® is developed by ourselves with focus on making life better and easier for our customers. We have created a knowledge which ensures a modern, stable and reliable quality.
